Product

Total 151 1

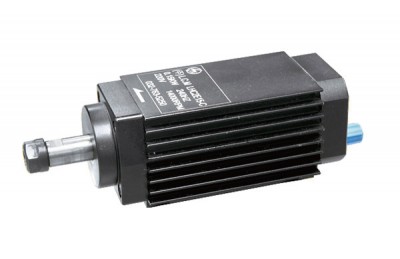

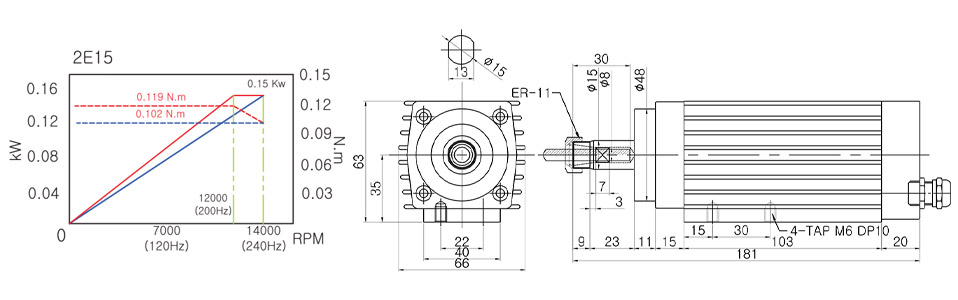

LHC2E15-C

  • 0.15kW
  • 240Hz
  • 14000RPM
  • 220V
  • 1.5Kg
  • Cooling : A self-cooled system

· Carver motor · Straight tool (no noise due to self-cooling)

VIEW DETAILS CAD FILE DOWNLOAD

LHD2E40-C

  • 0.4kW
  • 240Hz
  • 14000RPM
  • 220V
  • 3Kg
  • Cooling : Air cooling system

· Carver motor (for drill) · Straight tool · Fan direct type (noise may be present)

VIEW DETAILS CAD FILE DOWNLOAD

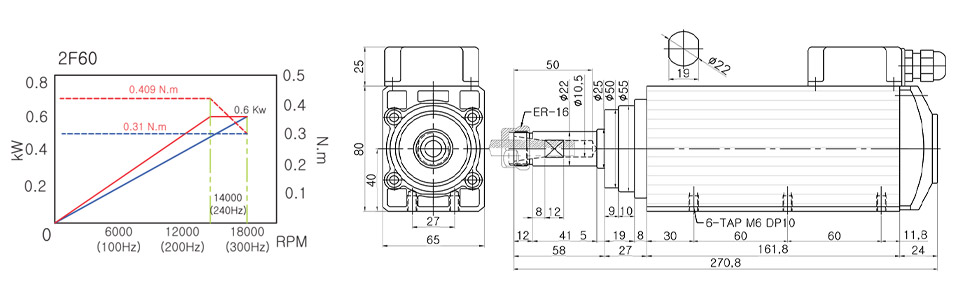

LHD2F60-C

  • 0.6kW
  • 300Hz
  • 18000RPM
  • 220V
  • 3.5Kg
  • Cooling : Air cooling system

· Carver motor (for drill) · Straight tool · Fan direct type (noise may be present)

VIEW DETAILS CAD FILE DOWNLOAD

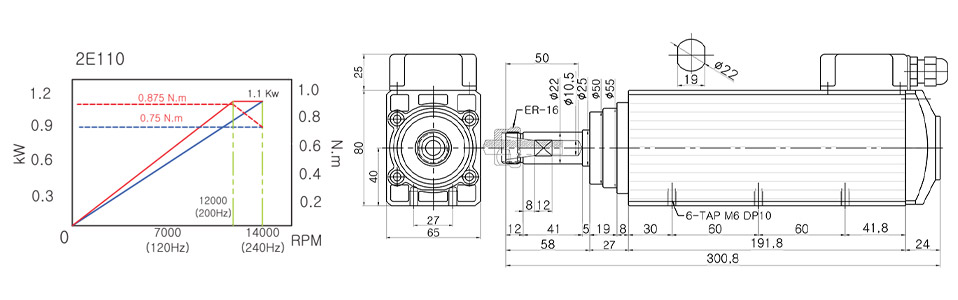

LHD2E110-C

  • 1.1kW
  • 240Hz
  • 14000RPM
  • 220V
  • 4.5Kg
  • Cooling : Air cooling system

· Carver motor (for drill) · Straight tool · Fan direct type (noise may be present)

VIEW DETAILS CAD FILE DOWNLOAD

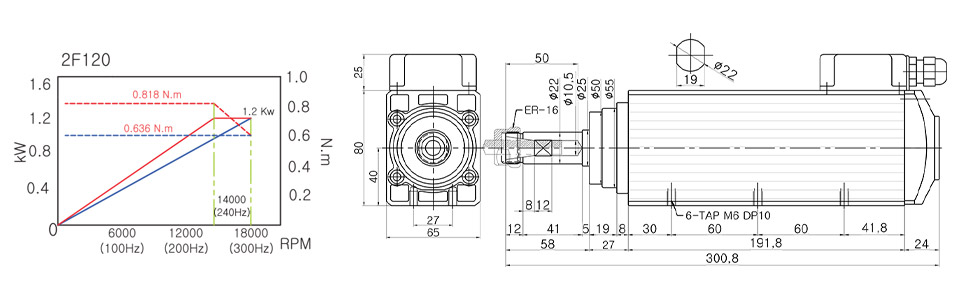

LHD2F120-C

  • 1.2kW
  • 300Hz
  • 18000RPM
  • 220V
  • 4.5Kg
  • Cooling : Air cooling system

· Carver motor (for drill) · Straight tool · Fan direct type (noise may be present)

VIEW DETAILS CAD FILE DOWNLOAD

LHD2G60-C

  • 0.6kW
  • 400Hz
  • 24000RPM
  • 220V
  • 3Kg
  • Cooling : Air cooling system

· Motor ball end mill straight tool for carving machine · Semi-milling(DC24V fan built in for less noise)

VIEW DETAILS CAD FILE DOWNLOAD

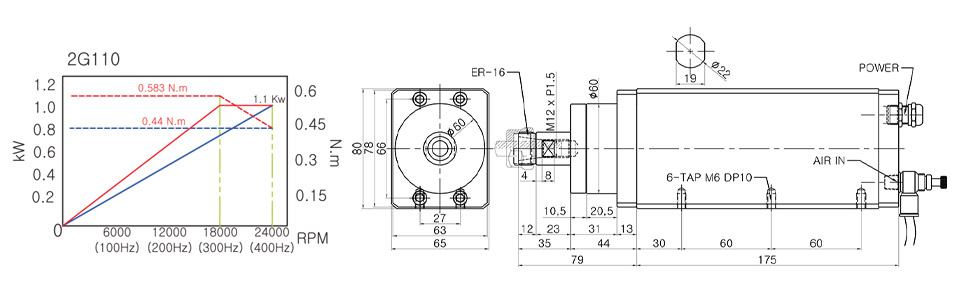

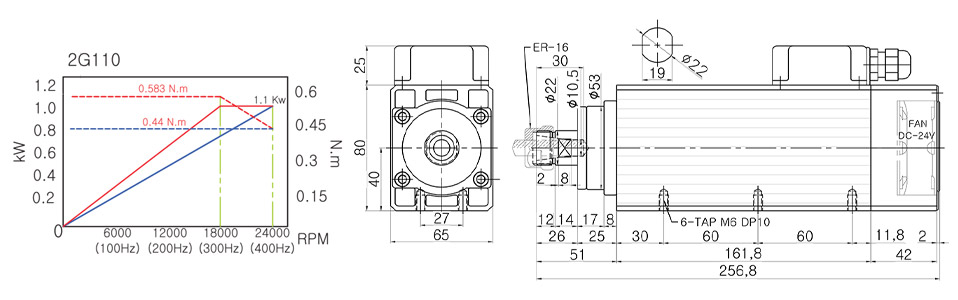

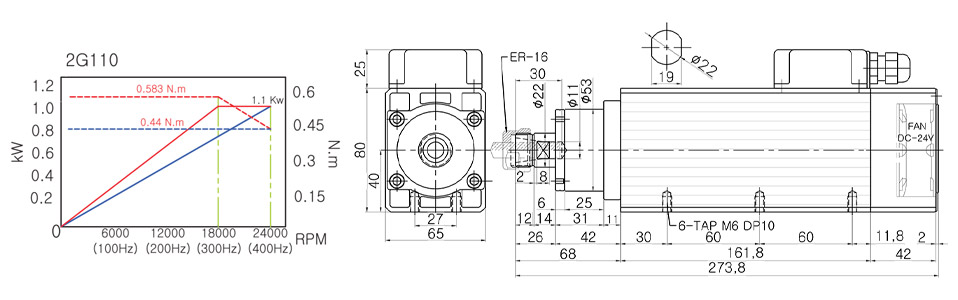

LHD2G110-C

  • 1.1kW
  • 400Hz
  • 24000RPM
  • 220V
  • 4Kg
  • Cooling : Air cooling system

· Motor ball end mill straight tool for carving machine · Semi-milling(DC24V fan built in for less noise)

VIEW DETAILS CAD FILE DOWNLOAD

LHD2G110-C[DB]

  • 1.1kW
  • 400Hz
  • 24000RPM
  • 220V
  • 4Kg
  • Cooling : Air cooling system

· Motor ball end mill straight tool for carving machine · Semi-milling(DC24V fan built in for less noise)

VIEW DETAILS CAD FILE DOWNLOAD

LHDA2G110-C[DB]

  • 1.1kW
  • 400Hz
  • 24000RPM
  • 220V
  • 4Kg
  • Cooling : Air cooling system

· Motor ball end mill straight tool for carving machine · Semi-milling (less noise with dry air cooling)

VIEW DETAILS CAD FILE DOWNLOAD

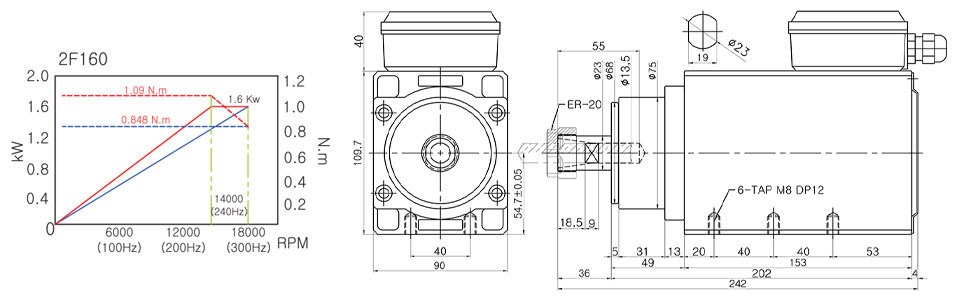

LHD2F160-C

  • 1.6kW
  • 300Hz
  • 18000RPM
  • 220/380V(Both available)
  • 5Kg
  • Cooling : Air cooling system

· Carver motor (for drill) · Straight tool · Fan direct type (noise may be present)

VIEW DETAILS CAD FILE DOWNLOAD

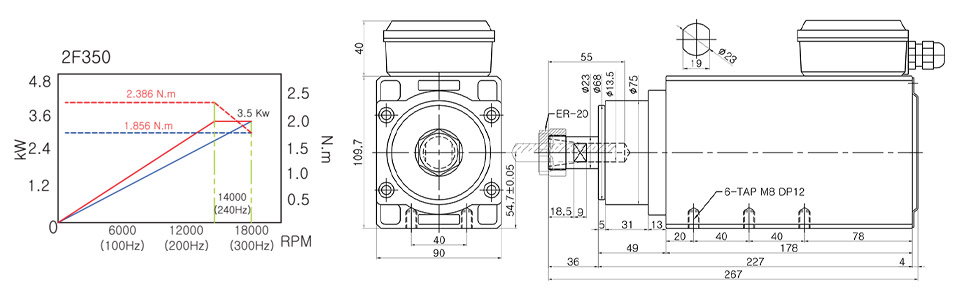

LHD2F350-C

  • 3.5kW
  • 300Hz
  • 18000PM
  • 220/380V(Both available)
  • 6Kg
  • Cooling : Air cooling system

· Carver motor (for drill) · Straight tool · Fan direct type (noise may be present)

VIEW DETAILS CAD FILE DOWNLOAD

LHD2G160-C

  • 1.6kW
  • 400Hz
  • 24000RPM
  • 220/380V(Both available)
  • 5.5Kg
  • Cooling : Air cooling system

· Carver motor · Ball-and-mill straight tool · Semi-precise shaping (DC24V fan built in for less noise)

VIEW DETAILS CAD FILE DOWNLOAD

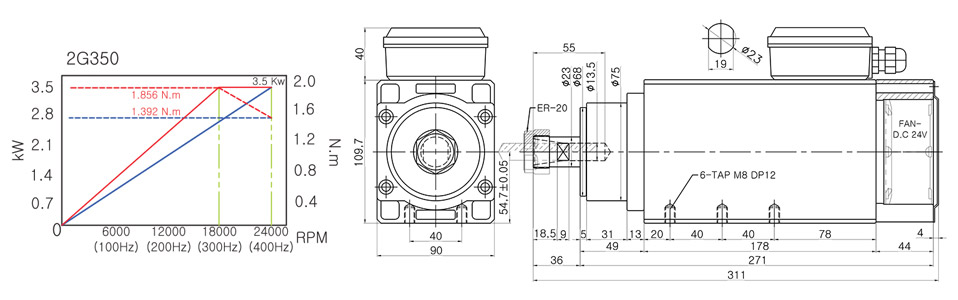

LHD2G350-C

  • 3.5kW
  • 400Hz
  • 24000RPM
  • 220/380V(Both available)
  • 6.5Kg
  • Cooling : Air cooling system

· Carver motor · Ball-and-mill straight tool · Semi-precise shaping (DC24V fan built in for less noise)

VIEW DETAILS CAD FILE DOWNLOAD

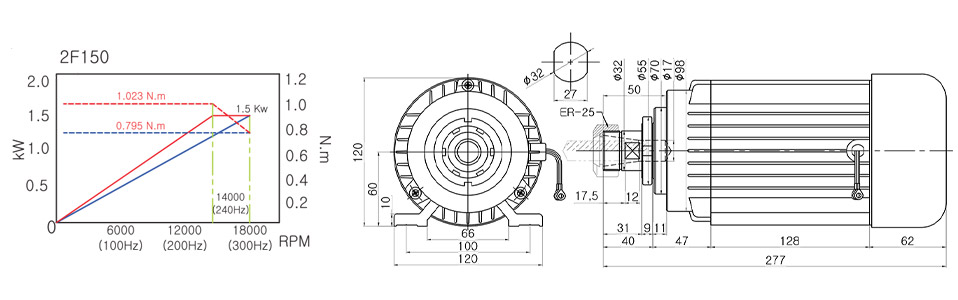

LHM2F150-C

  • 1.5kW
  • 300Hz
  • 18000RPM
  • 220V, 380V
  • 9Kg
  • Cooling : Air cooling system

· Motor for router · wood · Plastic · Aluminum shaping · Fan direct type (noise may be present)

VIEW DETAILS CAD FILE DOWNLOAD

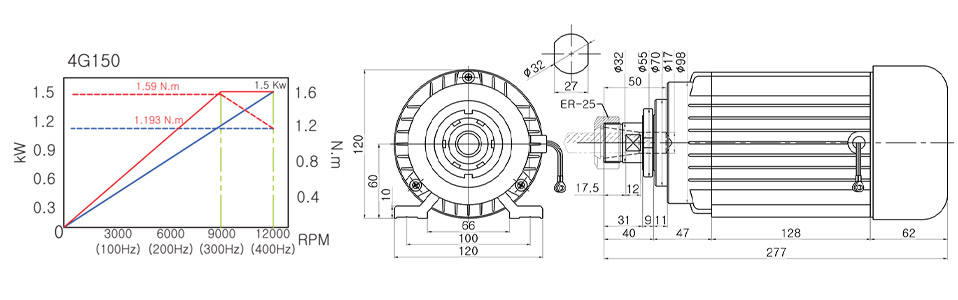

LHM4G150-C

  • 1.5kW
  • 400Hz
  • 12000RPM
  • 220V, 380V
  • 9Kg
  • Cooling : Air cooling system

· Motor for router · wood · Plastic · Aluminum shaping · Fan direct type (noise may be present)

VIEW DETAILS CAD FILE DOWNLOAD
