Product

Total 151 8

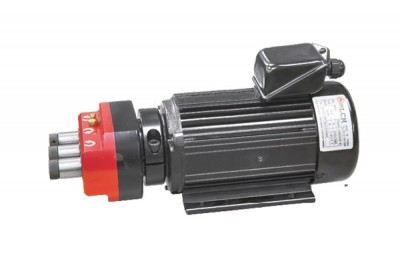

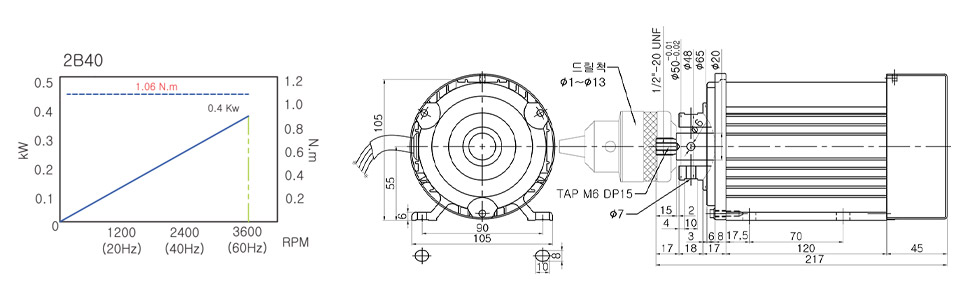

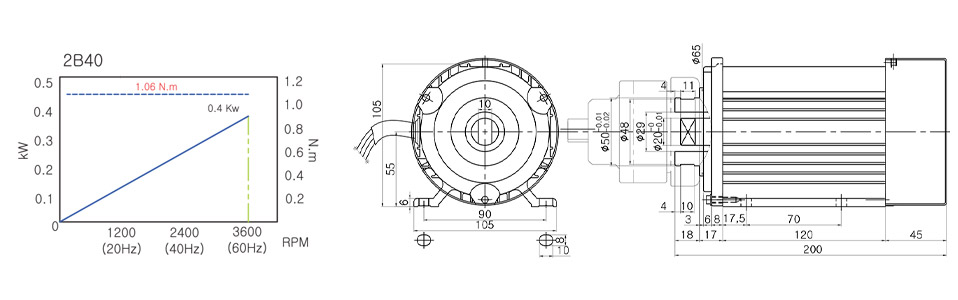

LHMA2B40-M

  • 0.4kW
  • 60Hz
  • 3600RPM
  • 220/380V(Both available)
  • 5Kg
  • Cooling : Air cooling system

· For multi-axis head mounting

VIEW DETAILS CAD FILE DOWNLOAD

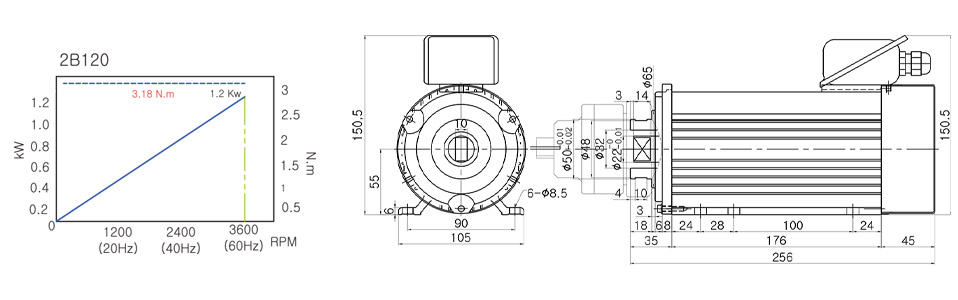

LHMA2B120-M

  • 1.2kW
  • 60Hz
  • 3600RPM
  • 220/380V(Both available)
  • 9Kg
  • Cooling : Air cooling system

· For multi-axis head mounting

VIEW DETAILS CAD FILE DOWNLOAD

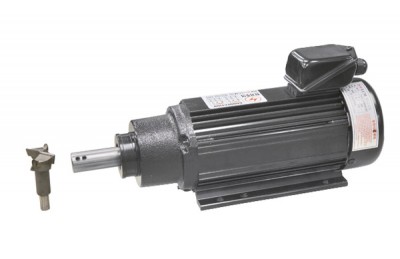

LHMA2B120-B

  • 1.2kW
  • 60Hz
  • 3600RPM
  • 220/380V(Both available)
  • 9Kg
  • Cooling : Air cooling system

· Drill-only Ø10 shank-only

VIEW DETAILS CAD FILE DOWNLOAD

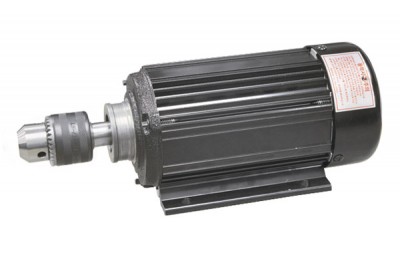

LHMA2B40-D

  • 0.4kW
  • 60Hz
  • 3600RPM
  • 220/380V(Both available)
  • 5Kg
  • Cooling : Air cooling system

· Installation of drill chuck Ø1~Ø13

VIEW DETAILS CAD FILE DOWNLOAD

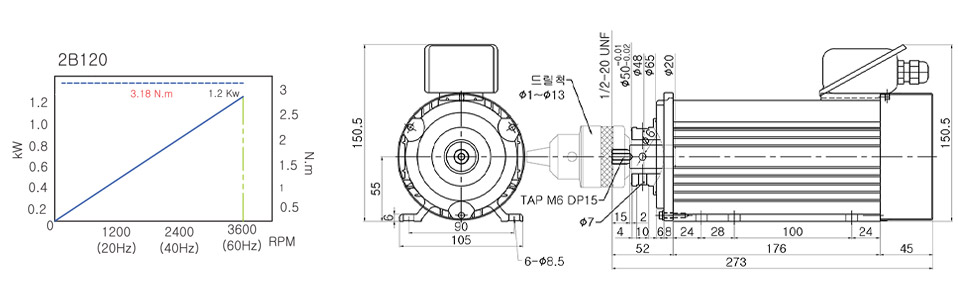

LHMA2B120-D

  • 1.2kW
  • 60Hz
  • 3600RPM
  • 220/380V(Both available)
  • 9Kg
  • Cooling : Air cooling system

· Installation of drill chuck Ø1~Ø13

VIEW DETAILS CAD FILE DOWNLOAD

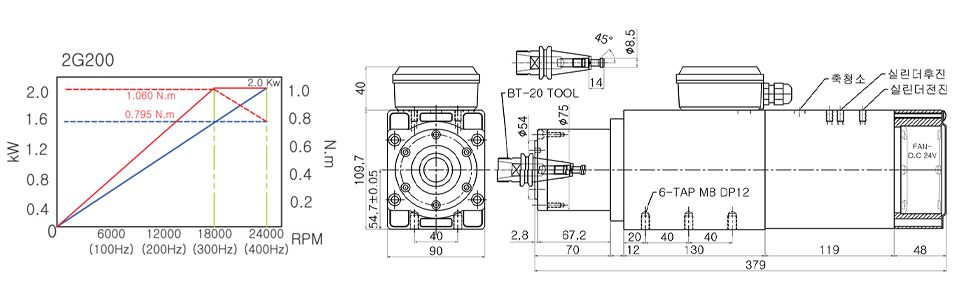

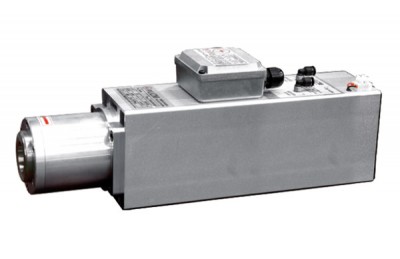

LHD2G200-B20

  • 2kW
  • 400Hz
  • 24000RPM
  • 220/380V(Both available)
  • 9Kg
  • Cooling : Installation of drill chuck Ø1~Ø13

· BT20 ATC · High-speed shaping · Motor for small carvings

VIEW DETAILS CAD FILE DOWNLOAD

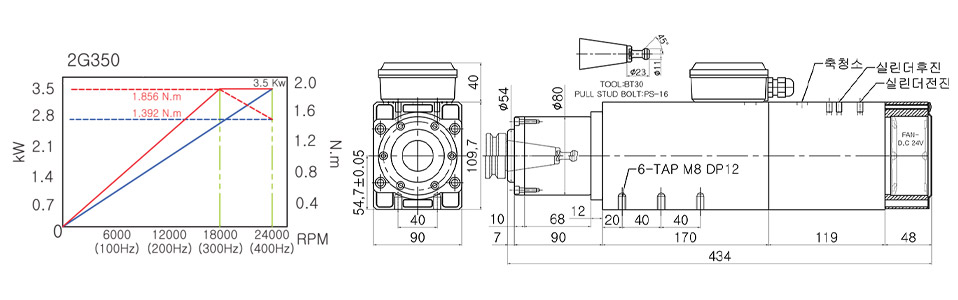

LHD2G350-B30

  • 3.5kW
  • 400Hz
  • 24000RPM
  • 220/380V(Both available)
  • 11.5Kg
  • Cooling : Air cooling system

· BT30 ATC · High-speed shaping · Motor for small carvings

VIEW DETAILS CAD FILE DOWNLOAD

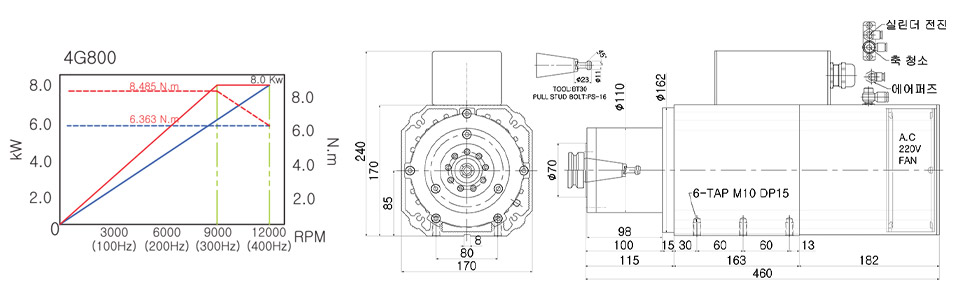

LHD4G800-B30

  • 8kW
  • 400Hz
  • 12000RPM
  • 220/380V(Both available)
  • 27Kg
  • Cooling : Air cooling system

· BT30 ATC · High-speed shaping spindle motor

VIEW DETAILS CAD FILE DOWNLOAD

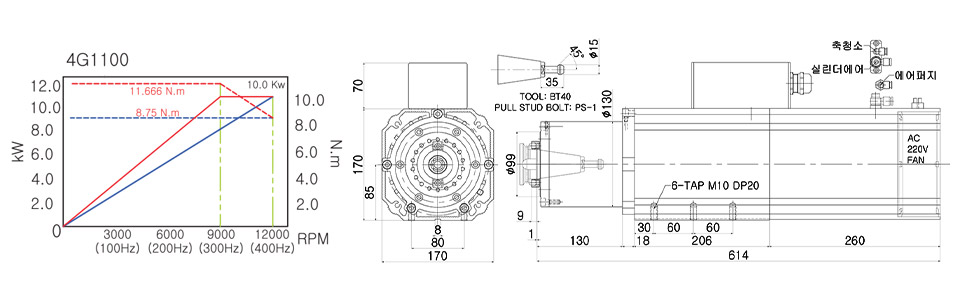

LHD4G1100-B40

  • 11kW
  • 400Hz
  • 12000RPM
  • 220/380V(Both available)
  • 46Kg
  • Cooling : Air cooling system

· BT40 ATC · high-speed shaping spindle motor

VIEW DETAILS CAD FILE DOWNLOAD

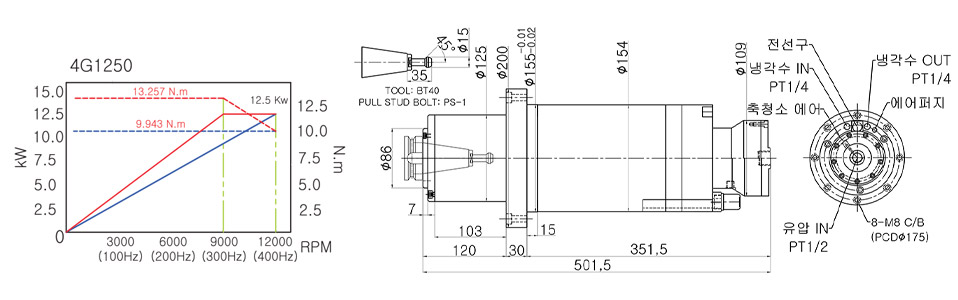

LHOVW4G1250-B40

  • 12.5kW
  • 400Hz
  • 12000RPM
  • 220/380V(Both available)
  • 45Kg
  • Cooling : Water cooling system

· BT40 ATC · high-speed shaping spindle motor

VIEW DETAILS CAD FILE DOWNLOAD

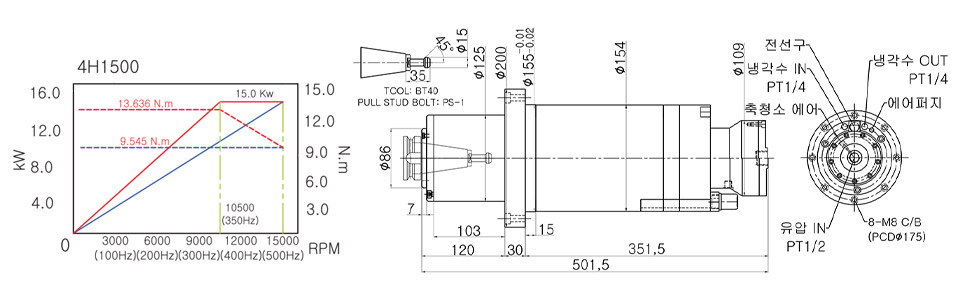

LHOVW4H1500-B40

  • 15kW
  • 500Hz
  • 15000RPM
  • 220/380V(Both available)
  • 45Kg
  • Cooling : Water cooling system

· BT40 ATC · high-speed shaping spindle motor

VIEW DETAILS CAD FILE DOWNLOAD

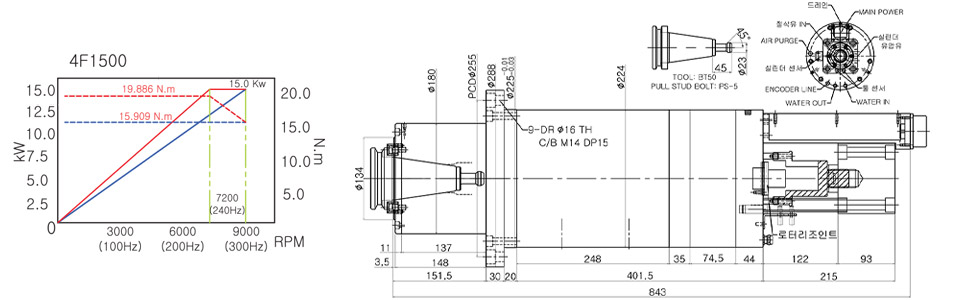

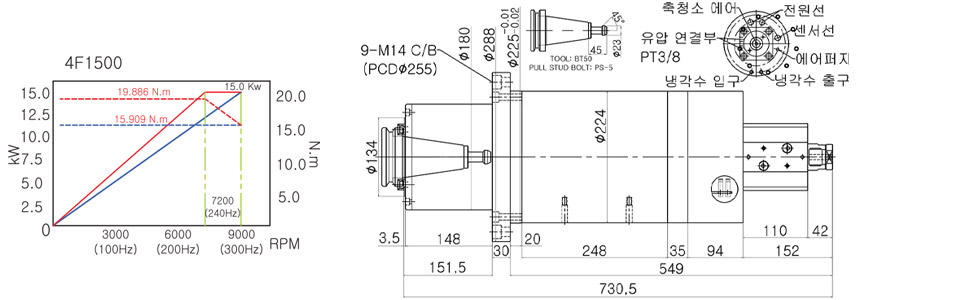

LHOVW4F1500-B50

  • 15kW
  • 300Hz
  • 9000RPM
  • 220/380V(Both available)
  • 128Kg
  • Cooling : Water cooling system

· BT50 ATC · high-speed shaping spindle motor

VIEW DETAILS CAD FILE DOWNLOAD

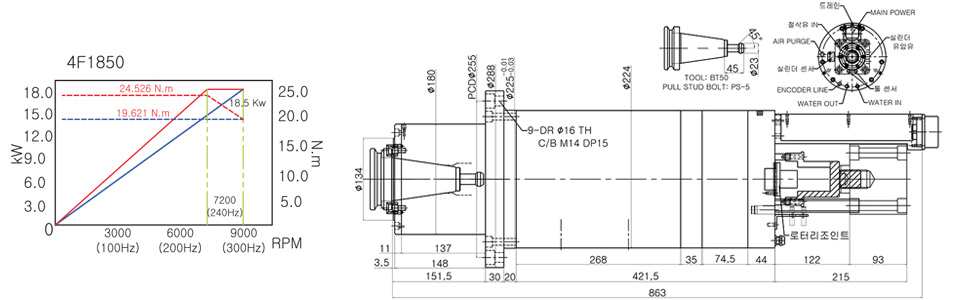

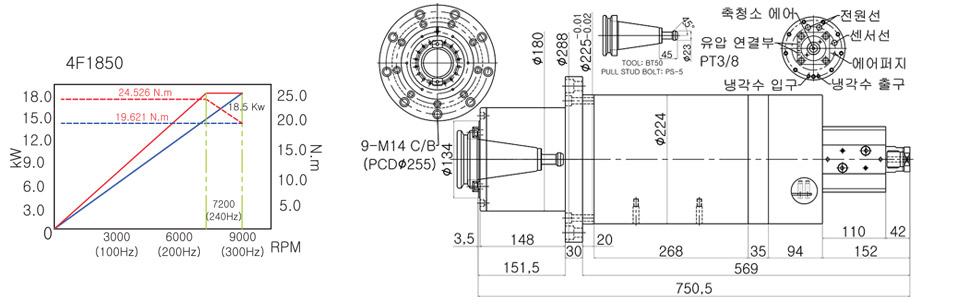

LHOVW4F1850-B50-PG

  • 18.5kW
  • 300Hz
  • 9000RPM
  • 220/380V(Both available)
  • 128Kg
  • Cooling : Water cooling system

· BT50 ATC · high-speed shaping spindle motor

VIEW DETAILS CAD FILE DOWNLOAD

LHOVW4F1500-B50-R

  • 15Kw
  • 300Hz
  • 9000RPM
  • 220/380V(Both available)
  • 128Kg
  • Cooling : Water cooling system

· BT50 ATC · high-speed shaping spindle motor

VIEW DETAILS CAD FILE DOWNLOAD

LHOVW4F1850-B50-R-PG

  • 18.5kW
  • 300Hz
  • 9000RPM
  • 220/380V(Both available)
  • 128Kg
  • Cooling : Water cooling system

· BT50 ATC · high-speed shaping spindle motor

VIEW DETAILS CAD FILE DOWNLOAD
