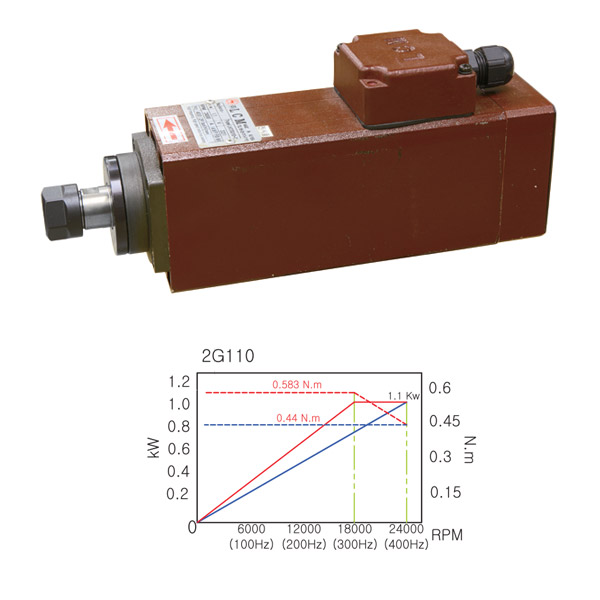

LHD2G110-C

· Motor ball end mill straight tool for carving machine · Semi-milling(DC24V fan built in for less noise)

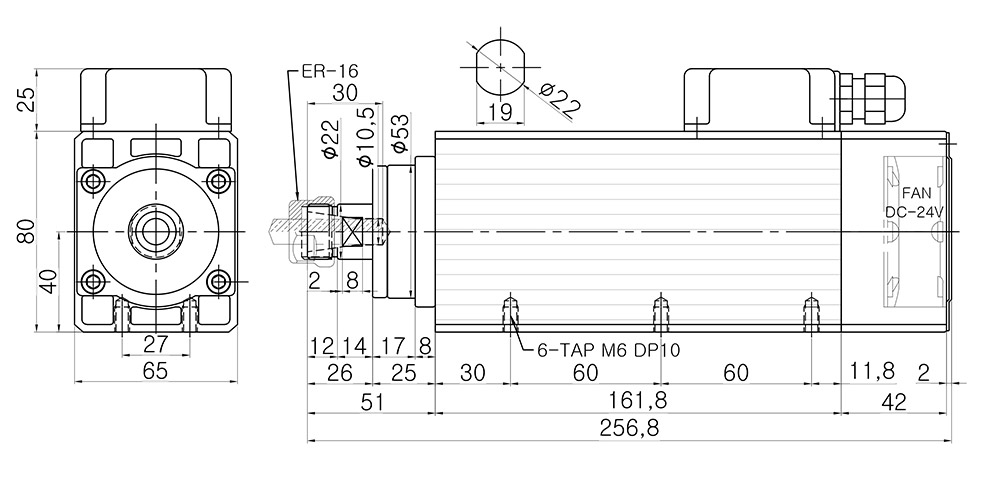

If you click on a picture or drawing, you can see it big

The color of the motor may change in some cases.
kW	Hz	RPM	V	Kg	Cooling
1.1kW	400Hz	24000RPM	220V	4Kg	Air cooling system

첨부파일

LHD2G110-C.dwg (109.3K)
